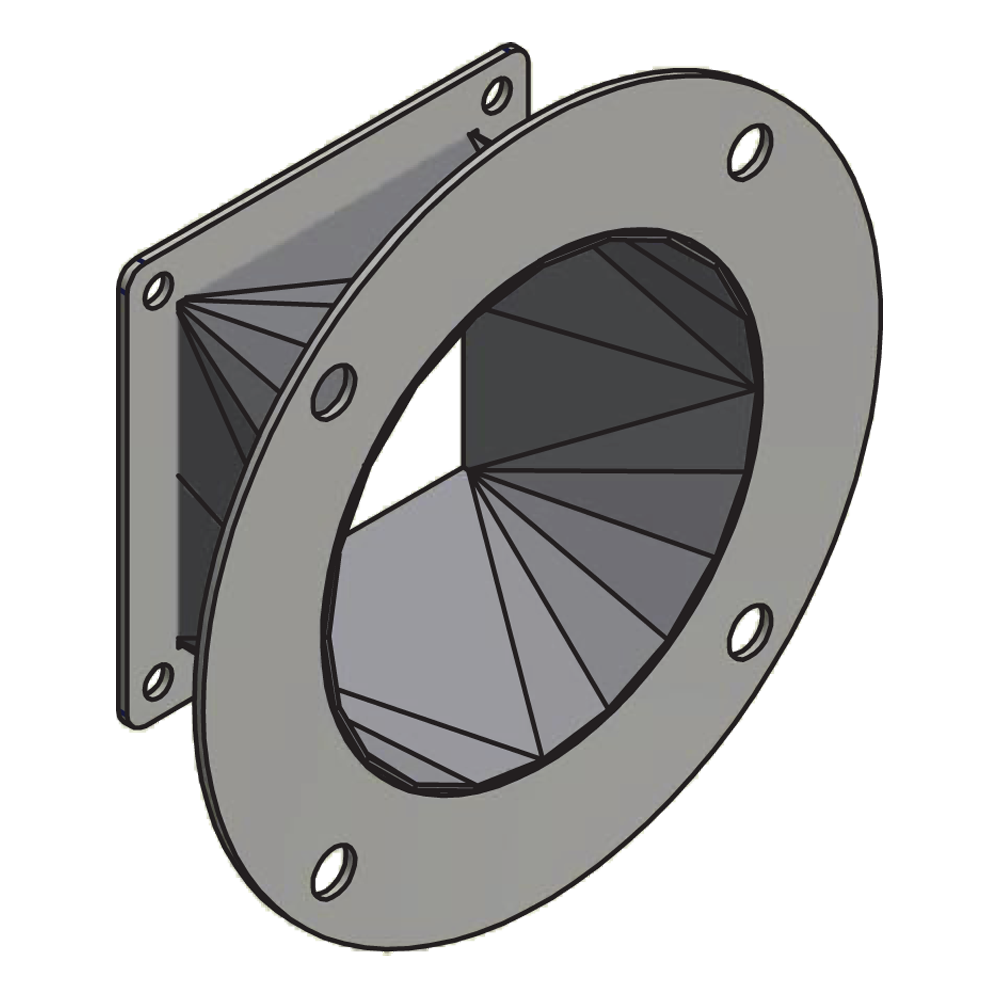

ELF - Króciec wylotowy

ELF

Króciec wylotowy

---
Zapytaj o produkt

Wsparcie techniczne

Karta katalogowa

Dobierz wentylator www.programdoboru.pl

m3/h
Pa

Wymiary

Typ ØD1 ØD2 ØD3 G H I J
  mm mm mm mm mm mm mm
ELF-97 96 132 152 64.1 64.1 76 76
ELF-108 96 132 152 64.1 64.1 76 76
ELF-120 123 157 177 80 79 96 96
ELF-133 123 157 177 91 87 115 105
ELF-146 123 157 177 91 87 115 105
ELF-160 156 192 212 91.3 107.2 110 120
ELF-180 156 192 212 100 122 130 130
ELF-200 194 233 253 118 135 143 160
ELF-225 221 257 277 136.5 148.5 161 173
ELF-250 245.5 283 303 171 189 210 230
ELF-315 311 352 378 233 243 271 281
ELF-400 352 398 428 289 274 332 315
ELF-450 352 398 428 319 297 369 345
Typ K L1 L ØO ØO1 X X1
  mm mm mm mm mm mm mm
ELF-97 90 90 50 9.5 6.1 4 4
ELF-108 90 90 50 9.5 6.1 4 4
ELF-120 114 114 50 9.5 7.1 4 4
ELF-133 130 120 50 9.5 7.1 4 4
ELF-146 130 120 50 9.5 7.1 4 4
ELF-160 126 140 50 9.5 7.1 6 4
ELF-180 155 155 50 9.5 7.1 6 4
ELF-200 163 180 50 9.5 7.1 6 4
ELF-225 181 193 50 9.5 11 6 4
ELF-250 235 255 50 9.5 11 6 4
ELF-315 305 315 100 9.5 11 8 8
ELF-400 366 349 100 9.5 11 8 8
ELF-450 409 385 100 9.5 11 8 8
